PanelView A-B的圖形操作界面 |
|
| 可整合A-B PLC來監視與操作，分為標準型與加強型系列 | |
|
|

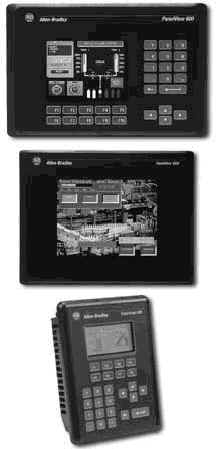

PanelView 標準型★ 依螢幕尺寸分為300, 300 Micro, 550, 600,1000, 1400 ★ 支援RS232(DF1),DH485, Data Highway Plus, Remote I/O,ControlNet,EtherNet/IP 通訊 與A-B PLC 連線及PROFIBUS 與Modbus通訊 |
|
| PanelView 300 Monochrome Terminals | Keypad Terminal | Keypad & Touch Terminal |
| PanelView 300 Monochrome, DH-485 Communication Ports 1 | 2711-K3A2L1 | |
| PanelView 300 Monochrome, RS-232 (DH-485) Communication Port | 2711-K3A5L1 | |
| PanelView 300 Monochrome, DeviceNet Communication& RS-232 Printer Port | 2711-K3A10L1 | |
| PanelView 300 Monochrome, RS-232 (DF1) Communication | 2711-K3A17L1 | |
| PanelView 300 Micro, RS-232 (DF1) Communication Port (8-pin mini-DIN) | 2711-M3A18L1 | |
| PanelView 300 Micro, RS-232 (DH-485) Communication Port (8-pin mini-DIN)1 | 2711-M3A19L1 | |
| PanelView 550 Monochrome Terminals | Keypad | Touch Terminal |
| PanelView 550 Monochrome, DH-485 Communication Ports | 2711-K5A2 | 2711-B5A2 |
| PanelView 550 Monochrome, DH-485 Communication & RS-232 Printer Port | 2711-K5A3 | 2711-B5A3 |
| PanelView 550 Monochrome, RS-232 (DH-485) Communication Port1 | 2711-K5A5 | 2711-B5A5 |
| PanelView 550 Monochrome, RS-232 (DH-485) Communication & RS-232 Port1 | 2711-K5A9 | 2711-B5A9 |
| PanelView 550 Monochrome, Remote I/O Communication & RS-232 Printer Port | 2711-K5A1 | 2711-B5A1 |
| PanelView 550 Monochrome, DH+ Communication & RS-232 Printer Port | 2711-K5A8 | 2711-B5A8 |
| PanelView 550 Monochrome, DeviceNet Communication & RS-232 Printer Port | 2711-K5A10 | 2711-B5A10 |
| PanelView 550 Monochrome, PROFIBUS Communication & RS-232 Printer Port | 2711-K5A12 | 2711-B5A12 |
| PanelView 550 Monochrome, Modbus Communication & RS-232 Printer Port | 2711-K5A14 | 2711-B5A14 |
| PanelView 550 Monochrome, ControlNet Communication & RS-232 Printer Port | 2711-K5A15 | 2711-B5A15 |
| PanelView 550 Monochrome, DF1 Communication & RS-232 Printer Port | 2711-K5A16 | 2711-B5A16 |
| PanelView 550 Monochrome, EtherNet/IP Communication & RS-232 Printer Port | 2711-K5A20 | 2711-B5A20 |
| PanelView 550 Monochrome Terminals - Touch ONLY | Keypad Terminal | Touch Terminal |
| PanelView 550 Monochrome, DH-485 Communication Ports | 2711-T5A2L1 | |
| PanelView 550 Monochrome, DH-485 Communication & RS-232 Printer Port4 | 2711-T5A3L1 | |
| PanelView 550 Monochrome, RS-232 (DH-485) Communication Port | 2711-T5A5L1 | |
| PanelView 550 Monochrome, RS-232 (DH-485) Communication & RS-232 Port | 2711-T5A9L1 | |
| PanelView 550 Monochrome, Remote I/O Communication & RS-232 Printer Port | 2711-T5A1L1 | |
| PanelView 550 Monochrome, DH+ Communication & RS-232 Printer Port | 2711-T5A8L1 | |
| PanelView 550 Monochrome, DeviceNet Communication & RS-232 Printer Port | 2711-T5A10L1 | |
| PanelView 550 Monochrome, PROFIBUS Communication & RS-232 Printer Port | 2711-T5A12L1 | |
| PanelView 550 Monochrome, Modbus Communication & RS-232 Printer Port | 2711-T5A14L1 | |
| PanelView 550 Monochrome, ControlNet Communication & RS-232 Printer Port | 2711-T5A15L1 | |
| PanelView 550 Monochrome, DF1 Communication & RS-232 Printer Port | 2711-T5A16L1 | |
| PanelView 550 Monochrome, EtherNet/IP Communication & RS-232 Printer Port | 2711-T5A20L1 | |
| PanelView 600 Color Terminals | Keypad Terminal | Keypad & Touch Terminal |
| PanelView 600 Color, DH-485 Communication Ports | 2711-K6C2 | 2711-B6C2 |
| PanelView 600 Color, DH-485 Communication & RS-232 Printer Port Communication Port1 | 2711-K6C5 | 2711-B6C5 |
| PanelView 600 Color, RS-232 (DH-485) Communication & RS-232 Port1 | 2711-K6C9 | 2711-B6C9 |
| PanelView 600 Color, Remote I/O Communication & RS-232 Printer Port | 2711-K6C1 | 2711-B6C1 |
| PanelView 600 Color, DH+ Communication & RS-232 Printer Port | 2711-K6C8 | 2711-B6C8 |
| PanelView 600 Color, DeviceNet Communication & RS-232 Printer Port | 2711-K6C10 | 2711-B6C10 |
| PanelView 600 Color, PROFIBUS Communication & RS-232 Printer Port | 2711-K6C12 | 2711-B6C12 |
| PanelView 600 Color, Modbus Communication & RS-232 Printer Port | 2711-K6C14 | 2711-B6C14 |
| PanelView 600 Color, ControlNet Communication & RS-232 Printer Port | 2711-K6C15 | 2711-B6C15 |
| PanelView 600 Color, DF1 Communication & RS-232 Printer Port | 2711-K6C16 | 2711-B6C16 |
| PanelView 600 Color, EtherNet/IP Communication & RS-232 Printer Port | 2711-K6C20 | 2711-B6C20 |
| PanelView 600 Color Terminals -- Touch Only | Keypad Terminal | Touch Terminal |
| PanelView 600 Color, DH-485 Communication Ports | 2711-T6C2L1 | |
| PanelView 600 Color, DH-485 Communication & RS-232 Printer Port | 2711-T6C3L1 | |
| PanelView 600 Color, RS-232 (DH-485) Communication Port | 2711-T6C5L1 | |
| PanelView 600 Color, RS-232 (DH-485) Communication & RS-232 Port | 2711-T6C9L1 | |
| PanelView 600 Color, Remote I/O Communication & RS-232 Printer Port | 2711-T6C1L1 | |
| PanelView 600 Color, DH+ Communication & RS-232 Printer Port | 2711-T6C8L1 | |
| PanelView 600 Color, DeviceNet Communication & RS-232 Printer Port | 2711-T6C10L1 | |
| PanelView 600 Color, PROFIBUS Communication & RS-232 Printer Port | 2711-T6C12L1 | |
| PanelView 600 Color, Modbus Communication & RS-232 Printer Port | 2711-T6C14L1 | |
| PanelView 600 Color, ControlNet Communication & RS-232 Printer Port | 2711-T6C15L1 | |
| PanelView 600 Color, DF1 Communication & RS-232 Printer Port | 2711-T6C16L1 | |
| PanelView 600 Color, EtherNet/IP Communication & RS-232 Printer Port | 2711-T6C20L1 | |
| PanelView 1000 Grayscale Terminals | Keypad Terminal | Touch Terminal |
| PanelView 1000 Grayscale, DH-485 Communication & RS-232 Printer Port 1 | 2711-K10G3 | 2711-T10G3 |
| PanelView 1000 Grayscale, RS-232 (DH-485) Communication & RS-232 Port1 | 2711-K10G9 | 2711-T10G9 |
| PanelView 1000 Grayscale, Remote I/O Communication & RS-232 Printer Port | 2711-K10G1 | 2711-T10G1 |
| PanelView 1000 Grayscale, DH+ Communication & RS-232 Printer Port | 2711-K10G8 | 2711-T10G8 |
| PanelView 1000 Grayscale, DeviceNet Communication & RS-232 Printer Port | 2711-K10G10 | 2711-T10G10 |
| PanelView 1000 Grayscale, PROFIBUS Communication & RS-232 Printer Port | 2711-K10G12 | 2711-T10G12 |
| PanelView 1000 Grayscale, Modbus Communication & RS-232 Printer Port | 2711-K10G14 | 2711-T10G14 |
| PanelView 1000 Grayscale, ControlNet Communication & RS-232 Printer Port | 2711-K10G15 | 2711-T10G15 |
| PanelView 1000 Grayscale, DF1 Communication & RS-232 Printer Port | 2711-K10G16 | 2711-T10G16 |
| PanelView 1000 Grayscale, EtherNet/IP Communication & RS-232 Printer Port | 2711-K10G20 | 2711-T10G20 |
| PanelView 1000 Color Terminals | Keypad Terminal | Touch Terminal |
| PanelView 1000 Color, DH-485 Communication & RS-232 Printer Port1 | 2711-K10C3 | 2711-T10C3 |
| PanelView 1000 Color, RS-232 (DH-485) Communication & RS-232 Printer Port1 | 2711-K10C9 | 2711-T10C9 |
| PanelView 1000 Color, Remote I/O Communication & RS-232 Printer Port | 2711-K10C1 | 2711-T10C1 |
| PanelView 1000 Color, DH+ Communication & RS-232 Printer Port | 2711-K10C8 | 2711-T10C8 |
| PanelView 1000 Color, DeviceNet Communication & RS-232 Printer Port | 2711-K10C10 | 2711-T10C10 |
| PanelView 1000 Color, PROFIBUS Communication & RS-232 Printer Port | 2711-K10C12 | 2711-T10C12 |
| PanelView 1000 Color, Modbus Communication & RS-232 Printer Port | 2711-K10C14 | 2711-T10C14 |
| PanelView 1000 Color, ControlNet Communication & RS-232 Printer Port | 2711-K10C15 | 2711-T10C15 |
| PanelView 1000 Color, DF1 Communication & RS-232 Printer Port | 2711-K10C16 | 2711-T10C16 |
| PanelView 1000 Color, EtherNet/IP Communication & RS-232 Printer Port | 2711-K10C20 | 2711-T10C20 |
| PanelView 1400 Color CRT Terminals | Keypad Terminal | Touch Terminal |
| PanelView 1400 Color, DH-485 Communication & RS-232 Printer Port | 2711-K14C3 | 2711-T14C3 |
| PanelView 1400 Color, RS-232 (DH-485) Communication & RS-232 Printer Port | 2711-K14C9 | 2711-T14C9 |
| PanelView 1400 Color, Remote I/O Communication & RS-232 Printer Port | 2711-K14C1 | 2711-T14C1 |
| PanelView 1400 Color, DH+ Communication RS-232 Printer Port | 2711-K14C8 | 2711-T14C8 |
| PanelView 1400 Color, DeviceNet Communication & RS-232 Printer Port | 2711-K14C10 | 2711-T14C10 |
| PanelView 1400 Color, PROFIBUS Communication & RS-232 Printer Port | 2711-K14C12 | 2711-T14C12 |
| PanelView 1400 Color, Modbus Communication & RS-232 Printer Port | 2711-K14C14 | 2711-T14C14 |
| PanelView 1400 Color, ControlNet Communication & RS-232 Printer Port | 2711-K14C15 | 2711-T14C15 |
| PanelView 1400 Color, DF1 Communication & RS-232 Printer Port | 2711-K14C16 | 2711-T14C16 |
| PanelView 1400 Color, EtherNet/IP Communication & RS-232 Printer Port | 2711-K14C20 | 2711-T14C20 |
| 軟體 | 型號 | |
| PanelBuilder32 Configuration Software for the PanelView Terminals | 2711-ND3 | |
| PanelView 1000e , 1400e 加強型 | |
|
|
|
★ PanelView 1400e CRT 圖形終端機提供彩色 VGA/SVGA (800x600pixel)。 ★ PanelView 1000e 提供彩色 VGA(640*480)TFT面板。 ★ 支援 Data Highway Plus, Remote I/O 與 ControlNet 通訊 與A-B PLC 連線。 ★ PanelView 1000e 與 1400e 有觸控螢幕或鍵盤可選擇。 ★ PanelBuilder 1400e 軟體為 Windows 作業系統的圖形界面, 易於設計, 規劃完成後使用 RS-232 埠直接傳到PanelView或經由PLC網路 Pass-through 傳送。 |
| PanelView 1000e Flat Panel Terminals 說明 | Keypad Terminal | Touch Terminal |
| PanelView 1000e 10.4-inch (26.4 cm) Color Flat Panel Display, Clip Mount, NEMA 4X (indoor only) with DH+ and Remote I/O Communication | 2711E-K10C6 | 2711E-T10C6 |
| PanelView 1000e 10.4-inch (26.4 cm) Color Flat Panel Display, Clip Mount, NEMA 4X (indoor only) with DH+, Remote I/O, and ControlNet Release 1.5 Communication | 2711E-K10C15 | 2711E-T10C15 |
| PanelView 1400e CRT Terminals | Keypad Terminal | Touch Terminal |
| PanelView 1400e 14-inch (35.6 cm) Color CRT Display, Stud Mount, NEMA 4X (indoor only) with DH+ and Remote I/O Communication | 2711E-K14C6 | 2711E-T14C6 |
| PanelView 1400e 14-inch (35.6 cm) Color CRT Display, Stud Mount, NEMA 4X (indoor only) with DH+, Remote I/O, and ControlNet Release 1.5 Communication | 2711E-K14C15 | 2711E-T14C15 |
| 說明 | Catalog Numbe | |
| PanelBuilder 1400e 發展軟體( Windows 95/ NT) | 2711E-ND1 | |
| 1000e, 1200e, 1400e PanelView檔案傳送 | 2711E-ND7 | |
